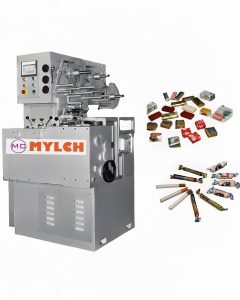

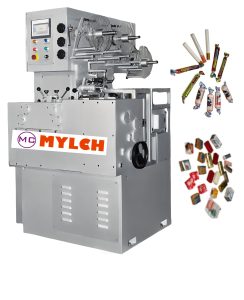

Cut and Wrap Machine Type ECB-6

Cut and Wrap Machine Type ECB-6

Shaping, cutting and packaging of chewing gum or chewy candy in top folding.

Product Range:

Length:                          16-45 mm

Width:                            12-25 mm

Height:                           5-16 mm

Max.candy length:      70 mm

For special size, we have to confirm in advance.

Special Features:

– Siemens control system, HMI operation, SEW motor

– Rope feeding rollers to produce products of rectangular, square or round shape

– “no product – no paper” device

– One or two films packing

– Suitable to produce special size

– Easy change of packing types among double twist, bottom folding and double ends folding

– Automatic control of sealing temperature

– Automatic photomark tracking system

– Integrated electrical and electronic components in the machine

– Machine stops automatically once lacking mass rope or mass rope jams

– Machine stops automatically once lacking wrapping paper

– Due to the automatic operation, several machines can be handled by one operator

– Easy for operation, maintenance and cleaning purposes

– System of protection: IP 55

Technical data:

Output:  400-550pieces/min, depending on exact candy size

Connect load:         4 kw

Pressure:           min.150 kPa

Power supply:      380V, 3 PHASE, 50HZ

Weight:                    1250 kg

Dimension:             1440 x 1210 x 1820mm

Wrapping material:  wax paper, cellophane, OPP

Optional extras:

– Automatic adjustment of the machine speed via a rope control unit

– Rope sizer machine

– 3^rd paper reel
